• One key to know the location of the pet, easy to use
• IP67 waterproof, a small amount of rain and other weather will not have any effect on the device
• Not afraid of the pet getting lost, accurate real-time positioning

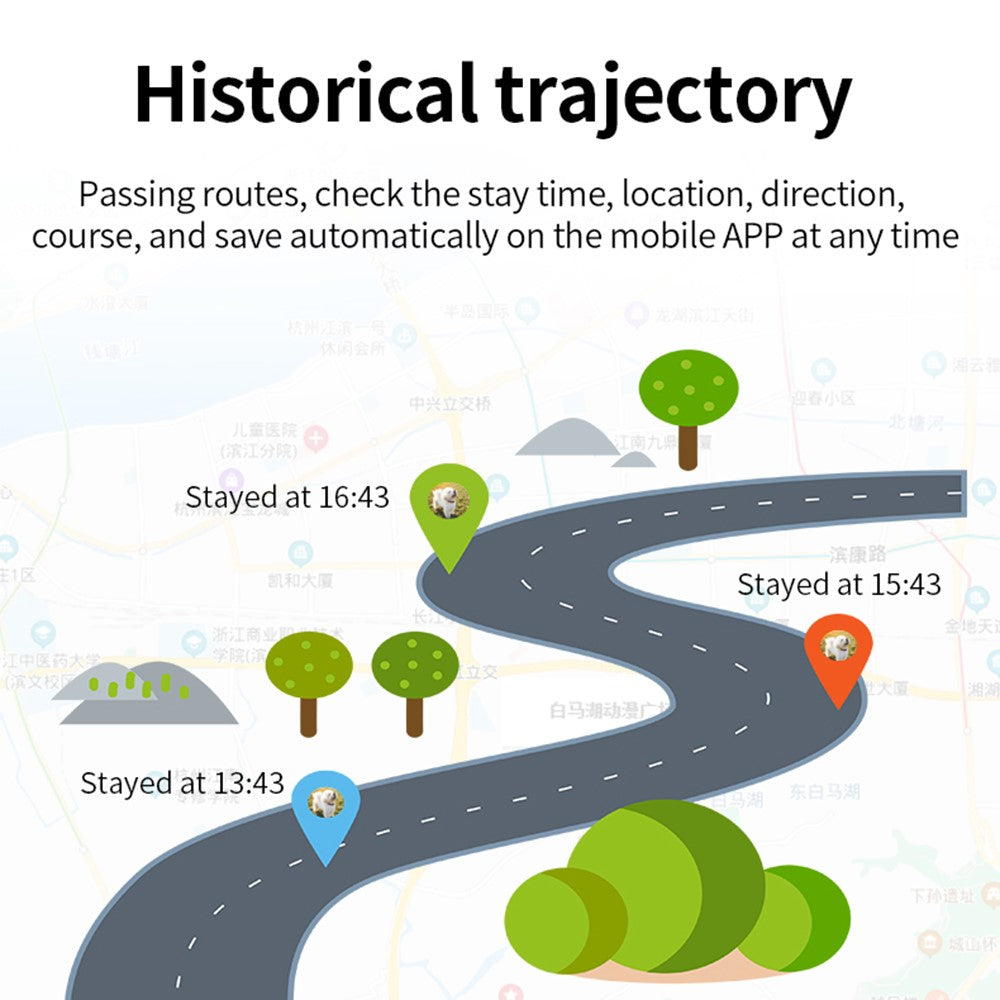

• Historical trajectory, recording passing routes, check the stay time, location, direction, course, and save automatically on the mobile APP at any time
• Electronic fence exceeding alarm, when pets leave the set safe activity area(100m-5000m), the locator will send an alarm message to APP, effectively preventing pets from getting lost
• Main functions: Real-time GPS/AGPS/WIFI/LBS positioning, SOS help, remote monitoring, dialing family numbers, pedometer, electronic fence warning reminder, historical track query, alarm clock function, class mode, power-saving mode

Specification:

• Chip: MT2503D/MTK3333/MTK5931
• Memory: 32M Flash Memory
• RF power amplifier: RDA6625E
• Motherboard stack size: 20*35*4.5mm (thickness is the total thickness of PCBA+GPS antenna)

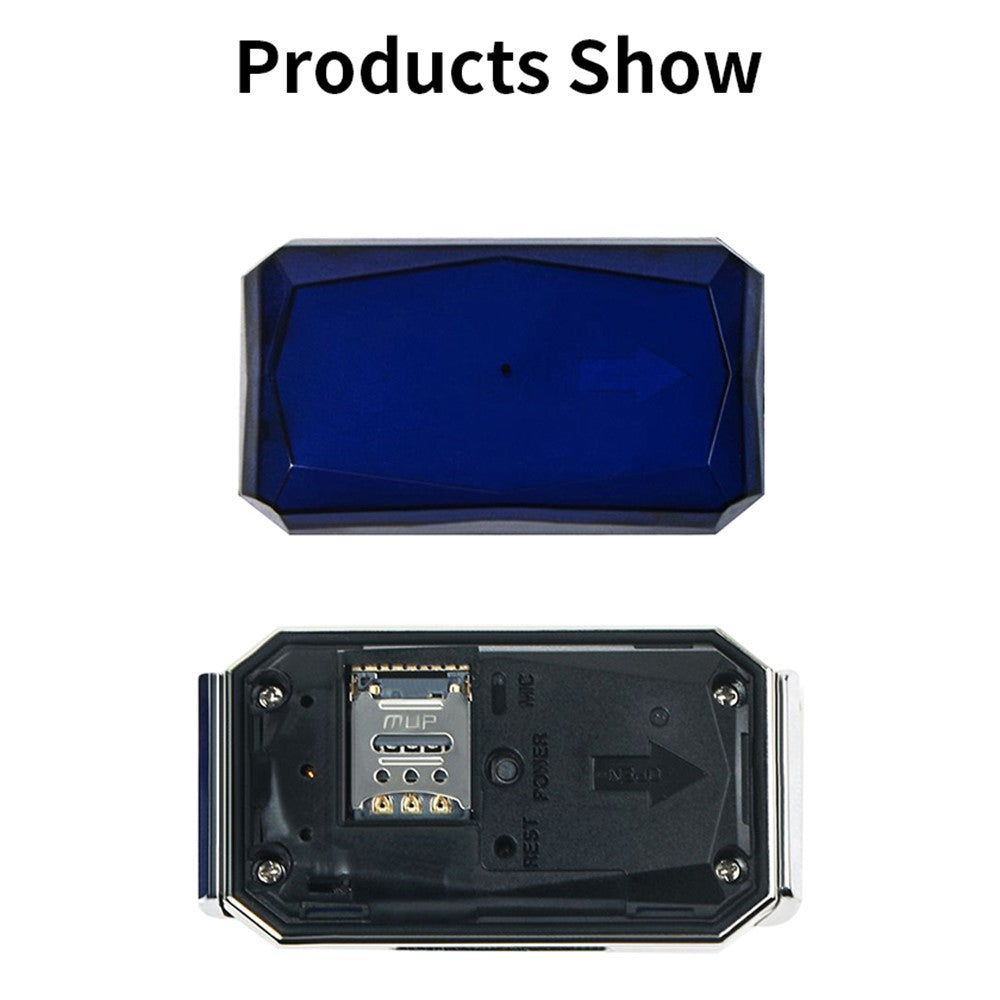

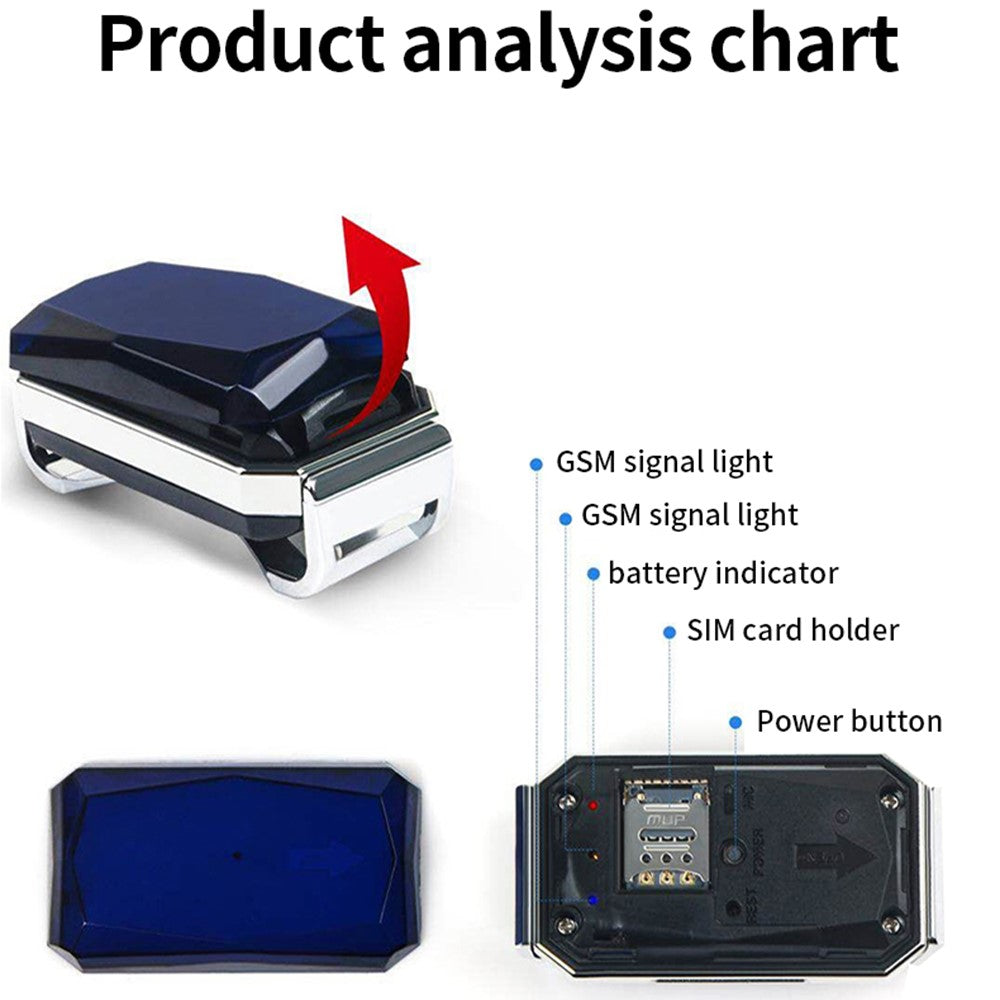

• SIM card: Nano SIM card holder
• Working environment temperature: -20to +70℃
• Working environment humidity: 20%-80%RH
• GSM frequency band: 850MHz/900MHz/1800 MHz/1900MHz
• GPRS: Class 12
• Battery: 3.7V 400mAh
• Standby average current: less than 2mA (specifically determined by the connection method)
• I/O interface: Built-in Micro 5pin
• Speaker: 0916 specification AAC
• MIC: High-definition silicon microphone (sound can be heard within 10 meters)
• Sensor: 3D G-Sensor
• TF: Maximum support 32G TF card (not included)
• GPS positioning accuracy: within 10 meters
• WIFI positioning accuracy: within 50 meters
• GSM positioning accuracy: 50-200 meters (depending on network conditions)
• Speed accuracy: 0.1 m/s
• GPS positioning time: cold start-38s, Hot start -2s (the specific time will vary depending on the environment)
• Shell material: PC
• GSM antenna: PIFA antenna
• Working voltage: 3.5-4.2V (3.4V low power automatic shutdown)
• Charging voltage/current: 5V/800mA
• GPS antenna: High-performance 15X15 ceramic antenna

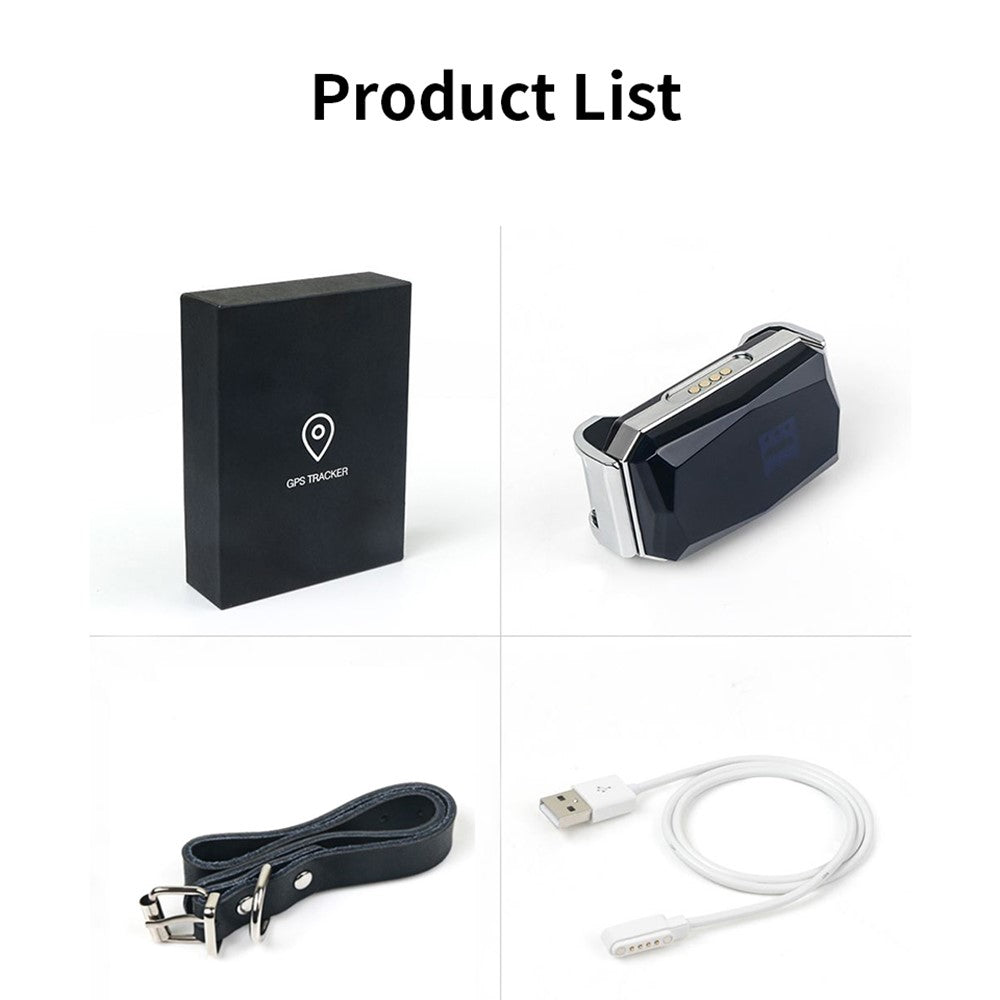

Package included

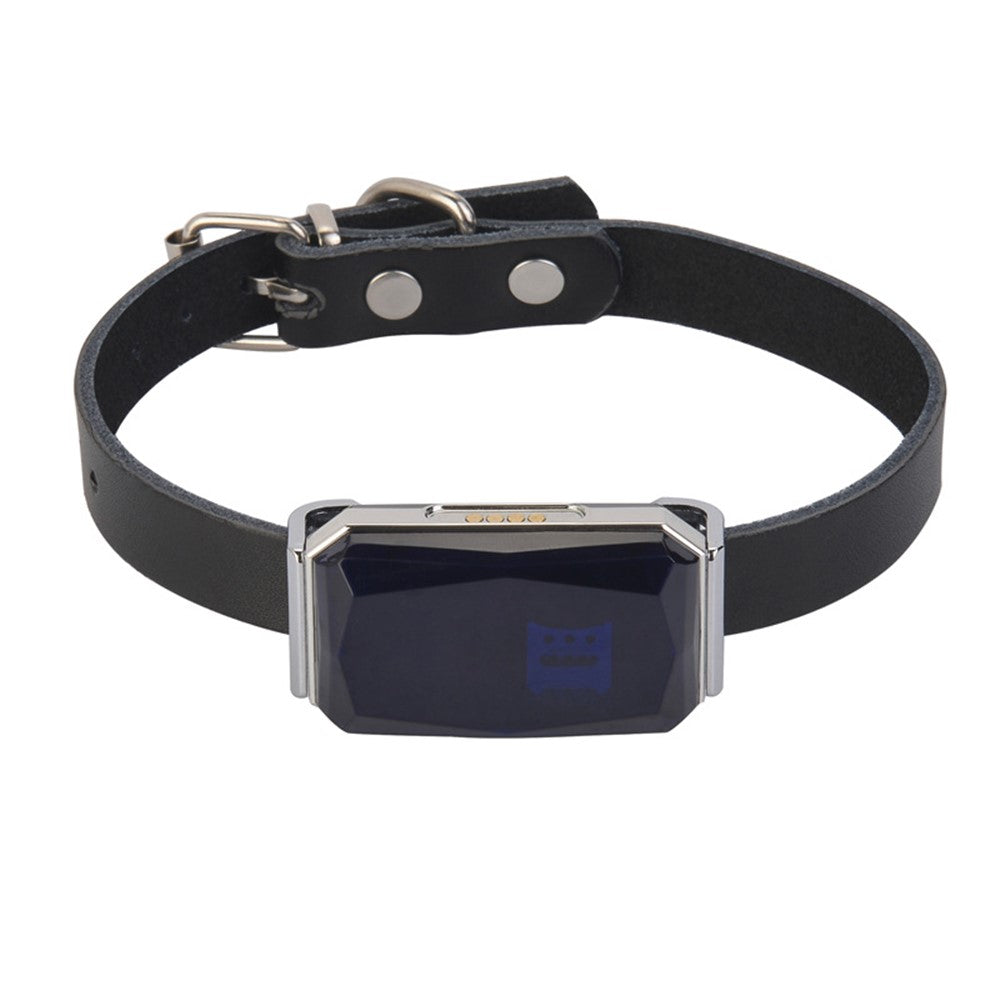

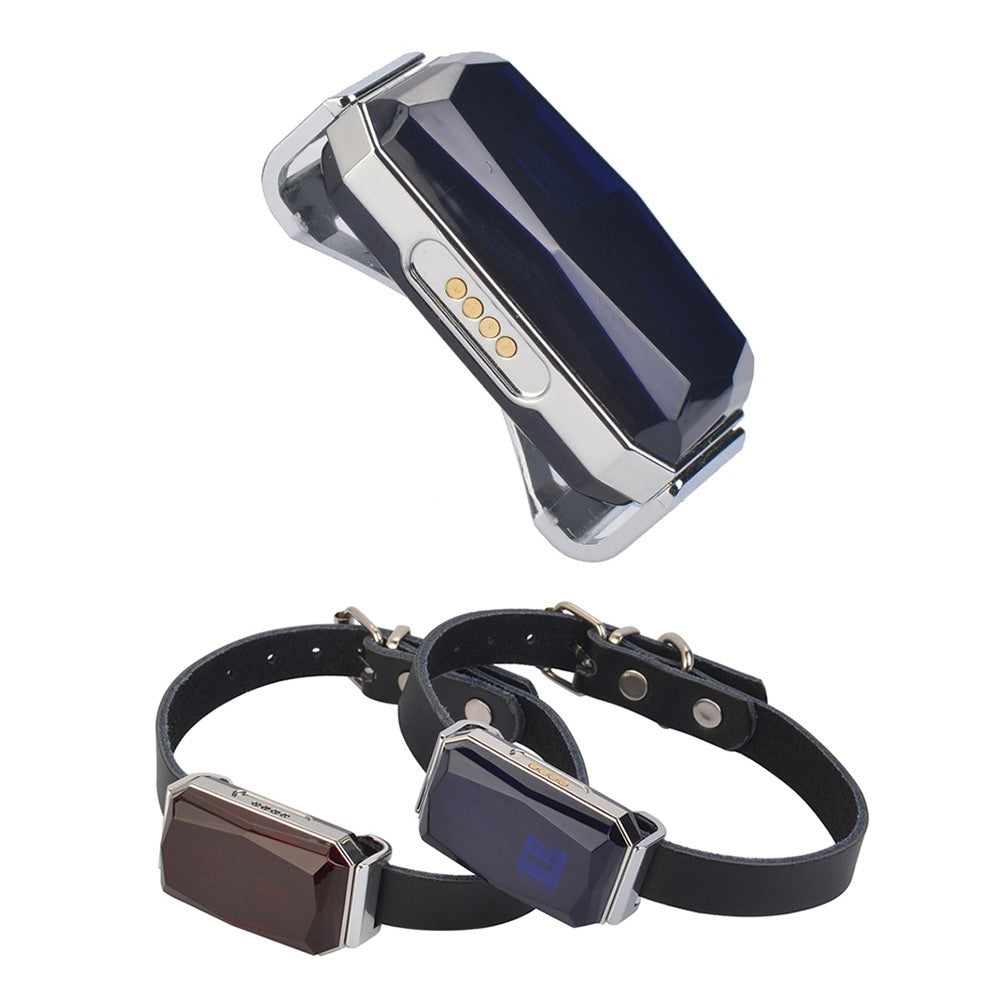

• 1 x GPS Tracker
• 1 x Charging Cable

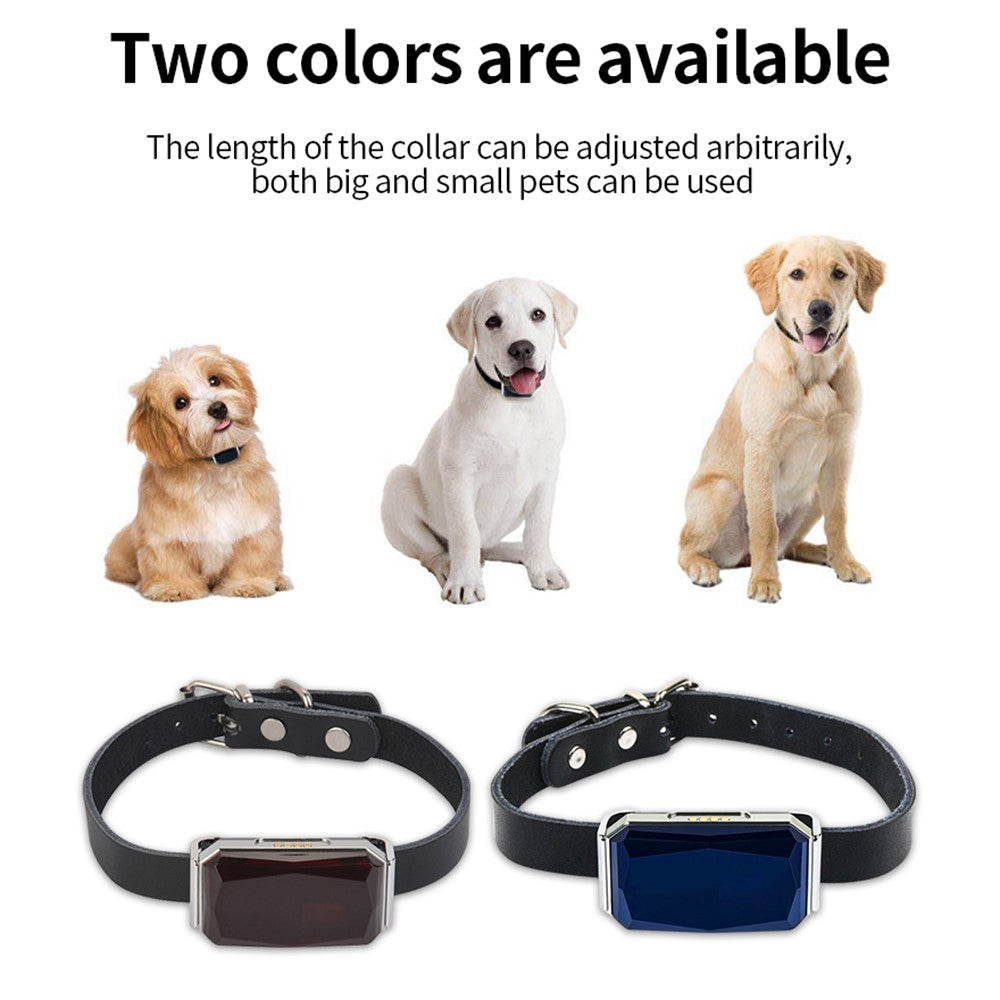

• 1 x Leather Collar
• 1 x English and Chinese Use Manual
